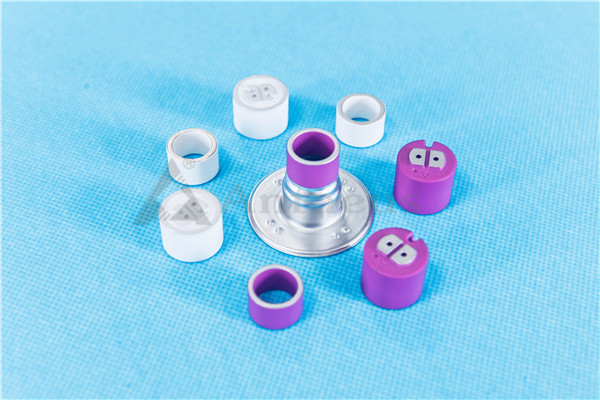

Microwave Magnetron Electrical Ceramic Insulators

  • Microwave Magnetron Electrical Ceramic Insulators
Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-M001
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms T/T or Negotiation
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Microwave Magnetron Ceramic Material 95% Aluminum Oxide
Density 3.7g/cm3-5.9g/cm3 Power Range ≤7W /cm2
Working Temperature -40℃-125℃ Application Microwave Magnetron Ceramic For Home Electrical Appliances
Working Voltage 3v~480v Thermal Shock Test 1.(Temperature)：-55℃/125℃ 2,(Time)2.2min 3 (Switching Time ) Max 10s 4 (Frequency)：15 Times
Working Life >5000 H
Highlight

Magnetron Electrical Ceramic Insulators

,

aluminum oxide Electrical Ceramic Insulators

,

aluminum oxide microwave magnetron parts
Leave a Message
Product Description

Microwave Magnetron Ceramic / Metallized Ceramic Ring for Magnetron​



1. Description:

Microwave magnetron ceramic is made of  95% alumina which is the more common name of Aluminum Oxide (Al2O3). It is a hard-wearing technical ceramic offering an excellent combination of both mechanical and electrical properties. It is well-suited for a wide range of industrial applications.Alumina features high hardness, wear resistance, low erosion levels, high temperature resistance, corrosion resistance, and bio-inertness. Its high temperature stability and thermal conductivity make it particularly suitable for high temperature applications such as thermocouple protection in high temperature measurement. Precision Ceramics offers a comprehensive range of advanced ceramic tubes and insulators for this purpose.



2. Feature Advantages:

1) High elasticity modulus

2) High compressive strength.

3) Anti corrosion

4) Abrasion resistance

5) Impact resistance

6) High precision

7) High stability

8) Good advanced ceramic materials

9) High welding sealing performance

10) High hardness and high density

11) Low thermal conductivity

12) Chemical inertness

13) Good wear resistance

14) High Fracture toughness

15) Good insulation performance

16) High temperature resistance

17) A variety of specifications is available

18) Satisfy various technical requests

19) Lower medium spoilage

20) Stiffness texture

21) Widely apply for automotive ceramic sensor , ceramic heater ,electric heating



3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio - 　 - - 0.20～0.25 0.20～0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃～100℃ ×10-6 K-1 - - -   ≤8 -
20℃～500℃ ×10-6 K-1 6.5～7.5 6.5～7.5 6.5～7.5 6.5～11.2 - -
20℃～800℃ ×10-6 K-1 6.5～8.0 6.5～8.0 6.3～7.3   - 4
20℃～1200℃ ×10-6 K-1 - 7.0～8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90～110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - ≤7.5 -
1MHz 50℃ - - 9.0～10 - - - -
10GHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Inspecting --- Packing

Microwave Magnetron Electrical Ceramic Insulators 0



6. Application Fields:

Microwave Magnetron Ceramic for Home Electrical Appliances , Aerospace and Other Industry!

Microwave Magnetron Electrical Ceramic Insulators 1



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

Microwave Magnetron Electrical Ceramic Insulators 2



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

Microwave Magnetron Electrical Ceramic Insulators 3



9. Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
