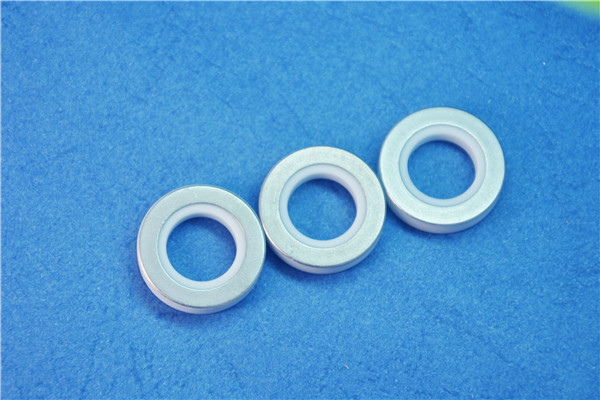

Wear Resistant 95% Machining Alumina Ceramic Seal For Cars

  • Wear Resistant 95% Machining Alumina Ceramic Seal For Cars
Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-B010
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms T/T or Negotiation
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Metallized Alumina Ceramic Rings / Ceramic Insulators For Battery Material Alumina (Aluminum Oxide, Al2O3)
Insulation Resistance 1000M Ω（1000VDC) Thermal Shock Resistance Room Temperature To 850C Will Not Burst Or Leak After Five Operations
Max. Use Temp. 1650℃ Water Absorption 0
ROHS Hardness ≥89 Flexural Strength 550 Mpa(psix10^3)
Compressive Strength 2600(377) Mpa(psix10^3) Coefficient Of Thermal Expansion 8.2 X10^-6/℃
Coefficient Of Thermal Conductivity 17-30.4 W/m.K
Highlight

Wear Resistant Machining Alumina Ceramic

,

95% Machining Alumina Ceramic

,

95% ceramic seal for cars
Leave a Message
Product Description

Alumina Seal Ceramic Rings / Industry Insulation Ceramic Parts



1. Description:

Alumina seal ceramic rings / industry insulation ceramic parts  have a excellent properties for chemical and physical stability as belows:
Thermal properties: High heat resistance and high thermal conductivity...
Mechanical properties: High strength and high hardness...
Other properties: High electrical insulation, high corrosion resistance..
99% Alumina ceramic is used to make high-temperature crucible, furnace tube and special wear-resistant materials, such as ceramic bearing, ceramic seal and water valve sheet, etc.
95% alumina ceramic is mainly used as corrosion-resistant and wear-resistant parts.Due to the addition of talc, the electrical properties and mechanical strength are improved, which can be sealed with molybdenum, niobium, tantalum and other metals, and some are used as electrical vacuum devices.


2. Feature Advantages:

1) High elasticity modulus

2) High compressive strength.

3) Anti corrosion

4) Abrasion resistance

5) Impact resistance

6) High precision

7) High stability

8) Good advanced ceramic materials

9) High welding sealing performance

10) High hardness and high density

11) Low thermal conductivity

12) Chemical inertness

13) Good wear resistance

14) High Fracture toughness

15) Good insulation performance

16) High temperature resistance

17) A variety of specifications is available

18) Satisfy various technical requests

19) Lower medium spoilage

20) Stiffness texture



3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio - 　 - - 0.20～0.25 0.20～0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃～100℃ ×10-6 K-1 - - -   ≤8 -
20℃～500℃ ×10-6 K-1 6.5～7.5 6.5～7.5 6.5～7.5 6.5～11.2 - -
20℃～800℃ ×10-6 K-1 6.5～8.0 6.5～8.0 6.3～7.3   - 4
20℃～1200℃ ×10-6 K-1 - 7.0～8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90～110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - ≤7.5 -
1MHz 50℃ - - 9.0～10 - - - -
10GHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Assembing --- Brazing --- Inspecting --- Packing

Wear Resistant 95% Machining Alumina Ceramic Seal For Cars 0



6. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

Wear Resistant 95% Machining Alumina Ceramic Seal For Cars 1



7. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

Wear Resistant 95% Machining Alumina Ceramic Seal For Cars 2



 8. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service

Wear Resistant 95% Machining Alumina Ceramic Seal For Cars 3



9. Shipping and Package:

Wear Resistant 95% Machining Alumina Ceramic Seal For Cars 4

10. Our aimed market:

Wear Resistant 95% Machining Alumina Ceramic Seal For Cars 5



Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
