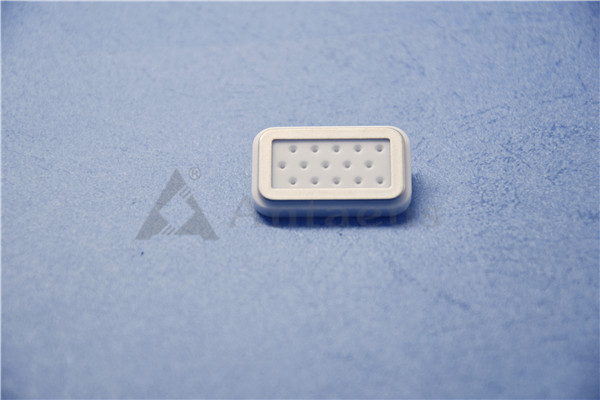

Ivory Electrical Alumina Ceramic Insulator Battery component Impact resistant

  • Ivory Electrical Alumina Ceramic Insulator Battery component Impact resistant
Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-I009
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms T/T or Negotiation
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Chemical Ingredients Al2O3 Max. Use Temp. 1650℃
Bulk Density 3.6g/cm3-3.9g/cm3 Water Absorption 0%
ROHS Hardness ≥85 Flexural Strength 358(52) - 550 Mpa(psix10^3)
Compressive Strength 2068(300) - 2600(377) Mpa(psix10^3) Coefficient Of Thermal Expansion 7.6 - 8.2 / 1X10^-6/℃
Coefficient Of Thermal Conductivity 16-30.4 / W/m.K Thermal Shock Resistance 250℃
Dielectricity Constant 9-9.7 / 1MHz.25℃ Dielectric Strength 8.3(210) - 8.7(220) / Ac-kV/mm(ac V/mil)
Volume Resistivity >10^13 Ohm-cm
Highlight

Impact Resistant Alumina Ceramic Insulator

,

Ivory Alumina Ceramic Insulator

,

Impact Resistant Ceramic Electrical Insulators
Leave a Message
Product Description

Alumina Ceramic Insulator /Electrical Insulation Rod For Oxygen Sensor



1. Description:

Typically used in ovens and furnaces, these are the most efficient of our rigid high-temperature insulation sheets. Please note that they require special care when installing since the crumbly material is difficult to work with and will crack easily. Sheets lose strength over time and are intended to be installed behind another facing or insulation material. They are flame resistant, meeting ASTM E84 0/0 for flame and smoke. Insulation performs best at temperatures above 1000° F.



2. Feature Advantages:

1) High compressive strength.

2) Good advanced ceramic materials

3) High welding sealing performance

4) Good wear resistance

5) Stiffness texture

6) Widely apply for automotive ceramic sensor , ceramic heater ,electric heating



3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio - 　 - - 0.20～0.25 0.20～0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃～100℃ ×10-6 K-1 - - -   ≤8 -
20℃～500℃ ×10-6 K-1 6.5～7.5 6.5～7.5 6.5～7.5 6.5～11.2 - -
20℃～800℃ ×10-6 K-1 6.5～8.0 6.5～8.0 6.3～7.3   - 4
20℃～1200℃ ×10-6 K-1 - 7.0～8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90～110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - ≤7.5 -
1MHz 50℃ - - 9.0～10 - - - -
10GHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Inspecting --- Packing

Ivory Electrical Alumina Ceramic Insulator Battery component Impact resistant 0



6. Application Fields:

New energy vehicles, automotive industry, motorcycles, recreational cars, industrial automation, commercial cars and so on.



Ivory Electrical Alumina Ceramic Insulator Battery component Impact resistant 1



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

Ivory Electrical Alumina Ceramic Insulator Battery component Impact resistant 2



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

Ivory Electrical Alumina Ceramic Insulator Battery component Impact resistant 3

9. Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery

Ivory Electrical Alumina Ceramic Insulator Battery component Impact resistant 4





10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service

Ivory Electrical Alumina Ceramic Insulator Battery component Impact resistant 5

11. Shipping and Package:

Ivory Electrical Alumina Ceramic Insulator Battery component Impact resistant 6

12. Our aimed market:

Ivory Electrical Alumina Ceramic Insulator Battery component Impact resistant 7



Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
