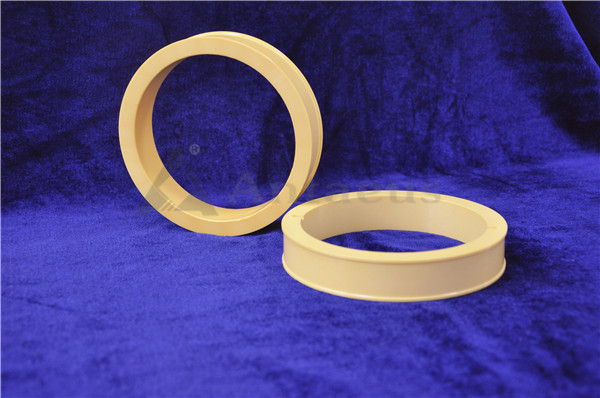

ISO14001 CNC Fine Machining Zirconia Ceramic Components

  • ISO14001 CNC Fine Machining Zirconia Ceramic Components
Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-Z012
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms T/T or Negotiation
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Zirconia Ceramic Parts / Structural Machining Ceramic Parts Heat Expansion Rate (10-6K-1) 10
Tensile 30 Kpsi - 32 Kpsi Flexural 55 Kpsi - 60 Kpsi
Compressive 300 Kpsi - 330 Kpsi Density 6.0g/cm3 And 3.9g/cm3
Fine-machining CNC Forming Process Isostatic Pressing
C.O.T.E 75 In / In°C (x10^7) - 78 In / In°C (x10^7) Working Temperature 1500 °C - 1750 °C
Dielectric Constant 9.5 - 9.8 Volume Resistivity >10^14 Ohm-cm
Dielectric Strength 16 KV/mm - 20 KV/mm
Highlight

ISO14001 Zirconia Ceramic Components

,

CNC Fine Machining Zirconia Ceramic Components

,

ISO14001 Fine Machining Zirconia Ceramic Parts
Leave a Message
Product Description

Structural Machining Zirconia Ceramic Material Components IATF16949



1. Description:

Isostatic pressing enables to produce various types of materials from powder compacts by reducing the porosity of powder mixture. The powder mixture is compacted and encapsulated using isostatic pressure, it means by using pressure equally from all directions.

According to the way of creating of the isostatic pressure we recognize hot and cold isostatic pressing. In the case of cold isostatic pressing ,the isostatic pressure is created by applying of the external pressure onto the water or oil and the subsequently onto the encapsulated powder mixture. Apart from moulding with no defect and homogeneous density and complex shapes, it also can achieve the goal of high pressure which will add up to 400 MPa～500MPa.Thus this process ensure to improve the compact of the molding and create favorable condition for subsequent sintering compact.



2. Feature Advantages:

1) High density.

2) High fracture toughness .

3) High hardness High Mechanical Strength.

4) Low thermal conductivity Excellent insulation .

5) Good Wear resistance.

6) Resistant to Corrosion and Chemical Attack.

7) Extreme Temperature Stability.

8) Outstanding Electrical and Electronic Properties.



3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio - 　 - - 0.20～0.25 0.20～0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃～100℃ ×10-6 K-1 - - -   ≤8 -
20℃～500℃ ×10-6 K-1 6.5～7.5 6.5～7.5 6.5～7.5 6.5～11.2 - -
20℃～800℃ ×10-6 K-1 6.5～8.0 6.5～8.0 6.3～7.3   - 4
20℃～1200℃ ×10-6 K-1 - 7.0～8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90～110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - ≤7.5 -
1MHz 50℃ - - 9.0～10 - - - -
10GHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Assembing --- Brazing --- Inspecting --- Packing

ISO14001 CNC Fine Machining Zirconia Ceramic Components 0



6. Application Fields:

Widely apply for new energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.

ISO14001 CNC Fine Machining Zirconia Ceramic Components 1



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

ISO14001 CNC Fine Machining Zirconia Ceramic Components 2



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

ISO14001 CNC Fine Machining Zirconia Ceramic Components 3

9. Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery

ISO14001 CNC Fine Machining Zirconia Ceramic Components 4

10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service

ISO14001 CNC Fine Machining Zirconia Ceramic Components 5

11.Shipping and Package:

ISO14001 CNC Fine Machining Zirconia Ceramic Components 6

12. Our aimed market :

ISO14001 CNC Fine Machining Zirconia Ceramic Components 7

 Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
