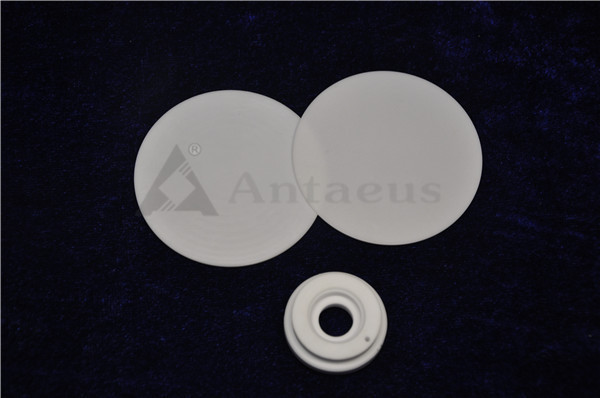

High Mechanical Strength Zirconia Ceramic Parts 99% 99.5% 99.8%

  • High Mechanical Strength Zirconia Ceramic Parts 99% 99.5% 99.8%
Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-Z041
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms T/T or Negotiation
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Zirconia Ceramic Parts / Structural Machining Ceramic Parts Heat Expansion Rate (10-6K-1) 10
Tensile 30 Kpsi - 32 Kpsi Flexural 55 Kpsi - 60 Kpsi
Compressive 300 Kpsi - 330 Kpsi Density 6.0g/cm3 And 3.9g/cm3
Fine-machining CNC Forming Process Isostatic Pressing
C.O.T.E 75 In / In°C (x10^7) - 78 In / In°C (x10^7) Working Temperature 1500 °C - 1750 °C
Dielectric Constant 9.5 - 9.8 Volume Resistivity >10^14 Ohm-cm
Dielectric Strength 16 KV/mm - 20 KV/mm
Highlight

Smooth 99.8% Zirconia Ceramic Parts

,

IATF16949 Zirconia Ceramic Parts
Leave a Message
Product Description

Zirconia Drawing Machine Tower Round , Wire Wheels , Reel.



1. Description:

There are many different types of ceramics that can be used within the chamber. But all of them must have zero outgassing (to avoid chemical components being given off by the ceramic and confusing the experiment), zero porosity (as highly porous materials would require long pumping times to achieve vacuum) and good electrical insulation. Other factors may apply such as thermal conductance, mechanical strength and being inert to magnetic fields.The chambers tend to be built from steel and, depending on the level of complexity, the cost of these analysis machines can range from thousands for a small bench top model to millions for specialized top end machines.

2. Feature Advantages:

1) High density.

2) High fracture toughness .

3) High hardness High Mechanical Strength.

4) Low thermal conductivity Excellent insulation .

5) Good Wear resistance.

6) Resistant to Corrosion and Chemical Attack.

7) Extreme Temperature Stability.

8) Outstanding Electrical and Electronic Properties.



3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio - 　 - - 0.20～0.25 0.20～0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃～100℃ ×10-6 K-1 - - -   ≤8 -
20℃～500℃ ×10-6 K-1 6.5～7.5 6.5～7.5 6.5～7.5 6.5～11.2 - -
20℃～800℃ ×10-6 K-1 6.5～8.0 6.5～8.0 6.3～7.3   - 4
20℃～1200℃ ×10-6 K-1 - 7.0～8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90～110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - ≤7.5 -
1MHz 50℃ - - 9.0～10 - - - -
10GHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Assembing --- Brazing --- Inspecting --- Packing

High Mechanical Strength Zirconia Ceramic Parts 99% 99.5% 99.8% 0



6. Application Fields:

Widely apply for new energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.

High Mechanical Strength Zirconia Ceramic Parts 99% 99.5% 99.8% 1



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

High Mechanical Strength Zirconia Ceramic Parts 99% 99.5% 99.8% 2



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

High Mechanical Strength Zirconia Ceramic Parts 99% 99.5% 99.8% 3

9. Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery

High Mechanical Strength Zirconia Ceramic Parts 99% 99.5% 99.8% 4

10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service

High Mechanical Strength Zirconia Ceramic Parts 99% 99.5% 99.8% 5

11.Shipping and Package:

High Mechanical Strength Zirconia Ceramic Parts 99% 99.5% 99.8% 6

12. Our aimed market :

High Mechanical Strength Zirconia Ceramic Parts 99% 99.5% 99.8% 7

 Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
