Insulated Alumina Ceramic Housing / Stud For 400A 24V HVDC Relay

  • Insulated Alumina Ceramic Housing / Stud For 400A 24V HVDC Relay
Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-K021
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms T/T or Negotiation
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Relay Ceramic Housing / Ceramic Relay Housing Material Alumina (Aluminum Oxide, Al2O3)
Insulation Resistance 1000M Ω（1000VDC) Dielectric Strength 3000VAC 1 Min
Working Temperature -40℃-125℃ Operate Time ≤30ms
Release Time ≤10ms Shock Resistance Functional 196m/s² (20G Above)
Shock Resistance Destructive 490m/s²(50G Above) Humidity 5～85%RH
Virbration Resistance 10-200HZ，49m/s²
Highlight

Insulated Alumina Ceramic Housing

,

24V HVDC Relay Ceramic Housing

,

Insulated Alumina Ceramic Stud
Leave a Message
Product Description

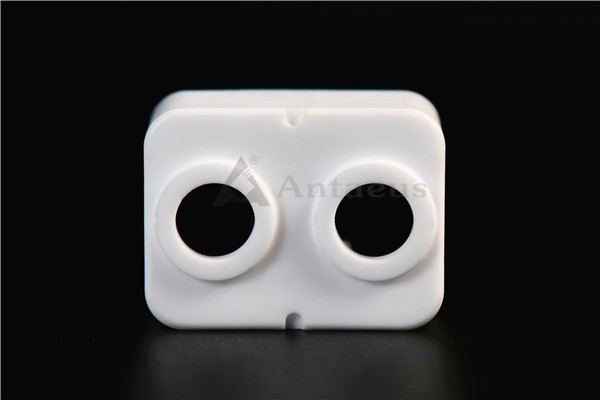

Insulated Alumina Ceramic Housing / Stud For 400A 24V HVDC Relay



1. Description:

A comparison of the technological, economic, public policy and environmental factors of HVDC and HVAC interregional transmission. Considering the financial and technical aspect the DC long transmission line is better than AC long transmission line.



2. Feature Advantages:

1) High compressive strength.

2) High hardness and high density

3) Low thermal conductivity

4) Chemical inertness

5) Good wear resistance

6) High Fracture toughness



3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio - 　 - - 0.20～0.25 0.20～0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃～100℃ ×10-6 K-1 - - -   ≤8 -
20℃～500℃ ×10-6 K-1 6.5～7.5 6.5～7.5 6.5～7.5 6.5～11.2 - -
20℃～800℃ ×10-6 K-1 6.5～8.0 6.5～8.0 6.3～7.3   - 4
20℃～1200℃ ×10-6 K-1 - 7.0～8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90～110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - ≤7.5 -
1MHz 50℃ - - 9.0～10 - - - -
10GHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Assembing --- Brazing --- Inspecting --- Packing

Insulated Alumina Ceramic Housing / Stud For 400A 24V HVDC Relay 0



6. Application Fields:

Widely apply for new energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.

Insulated Alumina Ceramic Housing / Stud For 400A 24V HVDC Relay 1



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

Insulated Alumina Ceramic Housing / Stud For 400A 24V HVDC Relay 2



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

Insulated Alumina Ceramic Housing / Stud For 400A 24V HVDC Relay 3



9. Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
