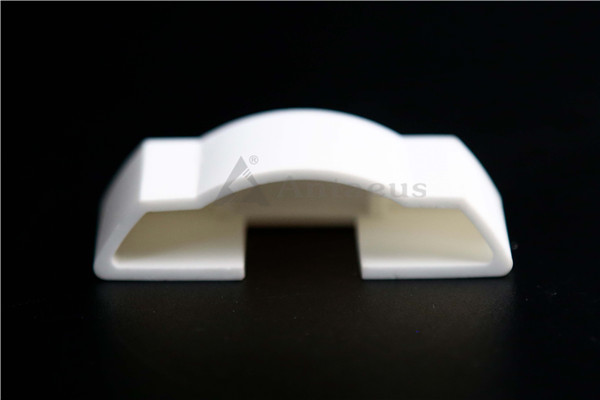

Advanced Ceramic Housing Material Abrasion Resistant For Electric Vehicle Relay

  • Advanced Ceramic Housing Material Abrasion Resistant For Electric Vehicle Relay
Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-K032
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms T/T or Negotiation
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Chemical Ingredients Al2O3 Max. Use Temp. 1650℃
Bulk Density 3.6g/cm3-3.9g/cm3 Water Absorption 0%
ROHS Hardness ≥85 Flexural Strength 358(52) - 550 Mpa(psix10^3)
Compressive Strength 2068(300) - 2600(377) Mpa(psix10^3) Coefficient Of Thermal Expansion 7.6 - 8.2 / 1X10^-6/℃
Coefficient Of Thermal Conductivity 16-30.4 / W/m.K Thermal Shock Resistance 250℃
Dielectricity Constant 9-9.7 / 1MHz.25℃ Dielectric Strength 8.3(210) - 8.7(220) / Ac-kV/mm(ac V/mil)
Volume Resistivity >10^13 Ohm-cm
Highlight

Al2O3 Ceramic Housing Material

,

Abrasion Resistant Ceramic Housing 3.6g/cm3

,

Electric Vehicle Relay Ceramic Housing 99%
Leave a Message
Product Description

Advanced Ceramic Housing Material Abrasion Resistant For Electric Vehicle Relay



1. Description:

High purity aluminas make for improved corrosion resistance due to lower impurity/silica content. Higher hardness, increased dielectric strength, and in some cases, superior flexural strength. Finer grain sizes also allow for smooth surface finishes. The grade of alumina is selected to best fit the application.

2. Feature Advantages:

1) Anti corrosion

2) Abrasion resistance

3) Impact resistance

4) Chemical inertness

5) High Fracture toughness

6) Stiffness texture



3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio - 　 - - 0.20～0.25 0.20～0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃～100℃ ×10-6 K-1 - - -   ≤8 -
20℃～500℃ ×10-6 K-1 6.5～7.5 6.5～7.5 6.5～7.5 6.5～11.2 - -
20℃～800℃ ×10-6 K-1 6.5～8.0 6.5～8.0 6.3～7.3   - 4
20℃～1200℃ ×10-6 K-1 - 7.0～8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90～110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - ≤7.5 -
1MHz 50℃ - - 9.0～10 - - - -
10GHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Inspecting --- Packing

Advanced Ceramic Housing Material Abrasion Resistant For Electric Vehicle Relay 0



6. Application Fields:

New energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.

Advanced Ceramic Housing Material Abrasion Resistant For Electric Vehicle Relay 1



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

Advanced Ceramic Housing Material Abrasion Resistant For Electric Vehicle Relay 2



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

Advanced Ceramic Housing Material Abrasion Resistant For Electric Vehicle Relay 3

9. Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery

Advanced Ceramic Housing Material Abrasion Resistant For Electric Vehicle Relay 4





10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service

Advanced Ceramic Housing Material Abrasion Resistant For Electric Vehicle Relay 5

11. Shipping and Package:

Advanced Ceramic Housing Material Abrasion Resistant For Electric Vehicle Relay 6

12. Our aimed market:

Advanced Ceramic Housing Material Abrasion Resistant For Electric Vehicle Relay 7



Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
