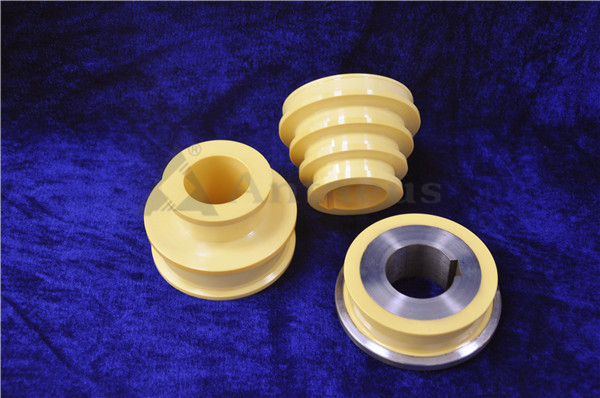

CNC 99 Alumina Custom Ceramic Parts Chemical Resistant

  • CNC 99 Alumina Custom Ceramic Parts Chemical Resistant
Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-C008
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms T/T or Negotiation
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Customized Ceramic Component/ 99 Alumina Ceramic Parts / Structural Machining Ceramic Parts/ Heat Expansion Rate (10-6K-1) 10
Tensile 30 Kpsi - 32 Kpsi Flexural 55 Kpsi - 60 Kpsi
Compressive 300 Kpsi - 330 Kpsi Density 6.0g/cm3 And 3.9g/cm3
Fine-machining CNC Forming Process Isostatic Pressing
C.O.T.E 75 In / In°C (x10^7) - 78 In / In°C (x10^7) Working Temperature 1500 °C - 1750 °C
Dielectric Constant 9.5 - 9.8 Volume Resistivity >10^14 Ohm-cm
Dielectric Strength 16 KV/mm - 20 KV/mm
Highlight

CNC Alumina Custom Ceramic Parts

,

ISO9001 Custom Ceramic Parts

,

HRA 83 Alumina Ceramic Parts
Leave a Message
Product Description

Chemical Resistance Ceramic Customized 99 Alumina Ceramic

1. Description:

Tabular alumina is produced by heating aluminum oxide to 1650° C or 3000° F. It has a high heat capacity, excellent thermal temperature, strength, and volume stability. It is formed from sintering balls of calcined alumina, which are crushed to form a powder. Tabular alumina has high refractory properties, mechanical strength, wear resistance, chemical purity, dielectric properties, and corrosion resistance in acids and alkaline.

2. Feature Advantages:

1) High welding sealing performance

2) High hardness and high density

3) High Fracture toughness

4) Good insulation performance

5) A variety of specifications is available

6) Satisfy various technical requests

7) Lower medium spoilage

8) Stiffness texture



3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio - 　 - - 0.20～0.25 0.20～0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃～100℃ ×10-6 K-1 - - -   ≤8 -
20℃～500℃ ×10-6 K-1 6.5～7.5 6.5～7.5 6.5～7.5 6.5～11.2 - -
20℃～800℃ ×10-6 K-1 6.5～8.0 6.5～8.0 6.3～7.3   - 4
20℃～1200℃ ×10-6 K-1 - 7.0～8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90～110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - ≤7.5 -
1MHz 50℃ - - 9.0～10 - - - -
10GHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Assembing --- Brazing --- Inspecting --- Packing

CNC 99 Alumina Custom Ceramic Parts Chemical Resistant 0



6. Application Fields:

Widely apply for new energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.

CNC 99 Alumina Custom Ceramic Parts Chemical Resistant 1



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

CNC 99 Alumina Custom Ceramic Parts Chemical Resistant 2



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

CNC 99 Alumina Custom Ceramic Parts Chemical Resistant 3

9. Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery

CNC 99 Alumina Custom Ceramic Parts Chemical Resistant 4

10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service

CNC 99 Alumina Custom Ceramic Parts Chemical Resistant 5

11.Shipping and Package:

CNC 99 Alumina Custom Ceramic Parts Chemical Resistant 6

12. Our aimed market :

CNC 99 Alumina Custom Ceramic Parts Chemical Resistant 7

 Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
