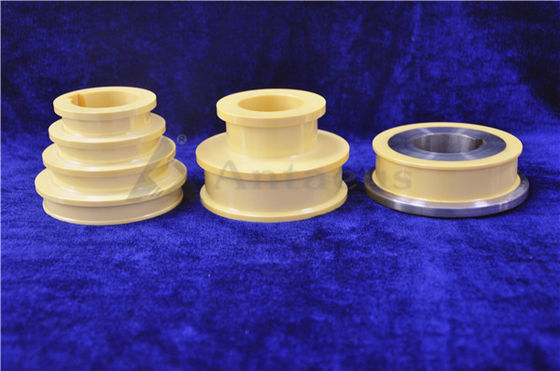

High Purity Alumina Custom Ceramic Parts Good Wear Resistance In Yellow Color

  • High Purity Alumina Custom Ceramic Parts Good Wear Resistance In Yellow Color
Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-C012
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms T/T or Negotiation
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Customized Ceramic Component/ 99 Alumina Ceramic Parts / Structural Machining Ceramic Parts/ Heat Expansion Rate (10-6K-1) 10
Tensile 30 Kpsi - 32 Kpsi Flexural 55 Kpsi - 60 Kpsi
Compressive 300 Kpsi - 330 Kpsi Density 6.0g/cm3 And 3.9g/cm3
Fine-machining CNC Forming Process Isostatic Pressing
C.O.T.E 75 In / In°C (x10^7) - 78 In / In°C (x10^7) Working Temperature 1500 °C - 1750 °C
Dielectric Constant 9.5 - 9.8 Volume Resistivity >10^14 Ohm-cm
Dielectric Strength 16 KV/mm - 20 KV/mm
Highlight

Yellow Alumina Custom Ceramic Parts

,

99.8% Alumina Custom Ceramic Parts

,

Wear Resistance Alumina Ceramic Parts
Leave a Message
Product Description

High Purity Alumina Custom Ceramic Parts Good Wear Resistance In Yellow Color

1. Description:

High purity aluminas make for improved corrosion resistance due to lower impurity/silica content. Higher hardness, increased dielectric strength, and in some cases, superior flexural strength. Finer grain sizes also allow for smooth surface finishes. The grade of alumina is selected to best fit the application.

2. Feature Advantages:

1) High Fracture toughness

2) Good insulation performance

3) High temperature resistance

4) Satisfy various technical requests

5) Lower medium spoilage

6) Chemical inertness



3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio - 　 - - 0.20～0.25 0.20～0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃～100℃ ×10-6 K-1 - - -   ≤8 -
20℃～500℃ ×10-6 K-1 6.5～7.5 6.5～7.5 6.5～7.5 6.5～11.2 - -
20℃～800℃ ×10-6 K-1 6.5～8.0 6.5～8.0 6.3～7.3   - 4
20℃～1200℃ ×10-6 K-1 - 7.0～8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90～110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - ≤7.5 -
1MHz 50℃ - - 9.0～10 - - - -
10GHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Assembing --- Brazing --- Inspecting --- Packing

High Purity Alumina Custom Ceramic Parts Good Wear Resistance In Yellow Color 0



6. Application Fields:

Widely apply for new energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.

High Purity Alumina Custom Ceramic Parts Good Wear Resistance In Yellow Color 1



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

High Purity Alumina Custom Ceramic Parts Good Wear Resistance In Yellow Color 2



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

High Purity Alumina Custom Ceramic Parts Good Wear Resistance In Yellow Color 3

9. Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery

High Purity Alumina Custom Ceramic Parts Good Wear Resistance In Yellow Color 4

10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service

High Purity Alumina Custom Ceramic Parts Good Wear Resistance In Yellow Color 5

11.Shipping and Package:

High Purity Alumina Custom Ceramic Parts Good Wear Resistance In Yellow Color 6

12. Our aimed market :

High Purity Alumina Custom Ceramic Parts Good Wear Resistance In Yellow Color 7

 Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
