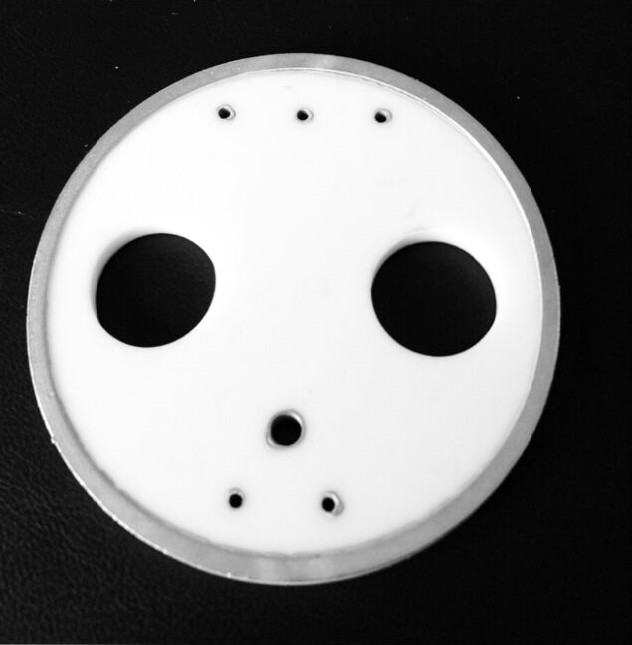

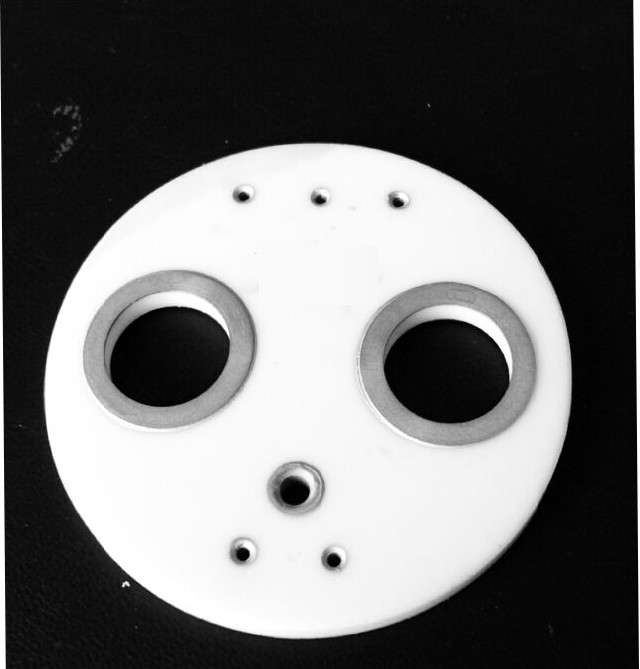

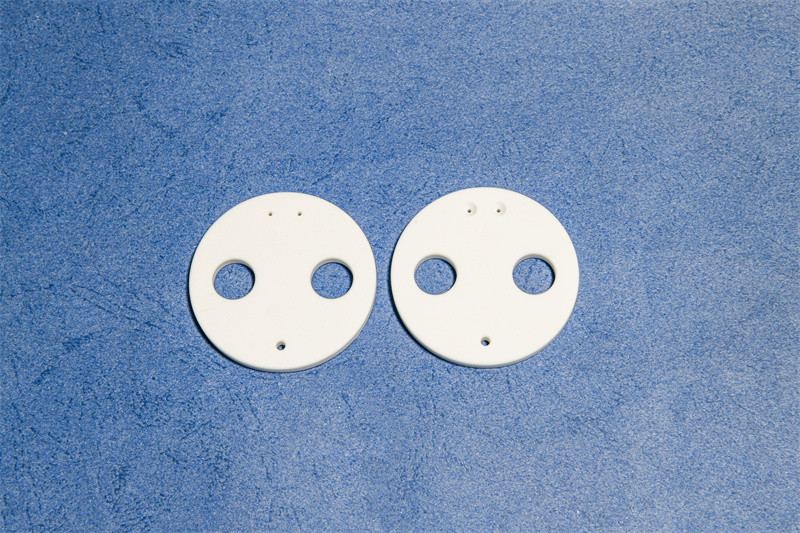

Lead Free Aluminum Custom Ceramic Plate For Round HV DC Relay

  • Lead Free Aluminum Custom Ceramic Plate For Round HV DC Relay
  • Lead Free Aluminum Custom Ceramic Plate For Round HV DC Relay
  • Lead Free Aluminum Custom Ceramic Plate For Round HV DC Relay
Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-C020
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms T/T or Negotiation
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Customized Ceramic Component/ 99 Alumina Ceramic Parts / Structural Machining Ceramic Parts/ Heat Expansion Rate (10-6K-1) 10
Tensile 30 Kpsi - 32 Kpsi Flexural 55 Kpsi - 60 Kpsi
Compressive 300 Kpsi - 330 Kpsi Density 6.0g/cm3 And 3.9g/cm3
Forming Process Isostatic Pressing C.O.T.E 75 In / In°C (x10^7) - 78 In / In°C (x10^7)
Working Temperature 1500 °C - 1750 °C Dielectric Constant 9.5 - 9.8
Volume Resistivity >10^14 Ohm-cm Dielectric Strength 16 KV/mm - 20 KV/mm
Material Aluminum Custom Ceramic Usage For Ceramic Plate For Round HV DC Relay
Name Lead Free Aluminum Custom Ceramic Plate For Round HV DC Relay
Highlight

HV DC Relay Ceramic Plate

,

RoHS Custom Ceramic Plate

,

Round HV DC Relay Ceramic Plate
Leave a Message
Product Description

Lead-free Aluminum Custom Ceramic Plate for Round HV DC Relay

1. Description:

Structural ceramics are the high-tech engineering ceramics that can withstand high mechanical, thermal, tribological stresses, corrosive environments, and high temperatures.

2. Feature Advantages:

1) High mechanical

2) High thermal

3) RoHS compliant and Lead-free

4) Good wear resistance

5) Good insulation performance

6) Available in cartridge and axial lead format and with various forming dimensions

Lead Free Aluminum Custom Ceramic Plate For Round HV DC Relay 0

3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio - 　 - - 0.20～0.25 0.20～0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃～100℃ ×10-6 K-1 - - -   ≤8 -
20℃～500℃ ×10-6 K-1 6.5～7.5 6.5～7.5 6.5～7.5 6.5～11.2 - -
20℃～800℃ ×10-6 K-1 6.5～8.0 6.5～8.0 6.3～7.3   - 4
20℃～1200℃ ×10-6 K-1 - 7.0～8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90～110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - ≤7.5 -
1MHz 50℃ - - 9.0～10 - - - -
10GHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Assembing --- Brazing --- Inspecting --- Packing

Lead Free Aluminum Custom Ceramic Plate For Round HV DC Relay 1



6. Application Fields:

Widely apply for new energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.

Lead Free Aluminum Custom Ceramic Plate For Round HV DC Relay 2



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

Lead Free Aluminum Custom Ceramic Plate For Round HV DC Relay 3



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

Lead Free Aluminum Custom Ceramic Plate For Round HV DC Relay 4

9. Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery

Lead Free Aluminum Custom Ceramic Plate For Round HV DC Relay 5

10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service

Lead Free Aluminum Custom Ceramic Plate For Round HV DC Relay 6

11.Shipping and Package:

Lead Free Aluminum Custom Ceramic Plate For Round HV DC Relay 7

12. Our aimed market :

Lead Free Aluminum Custom Ceramic Plate For Round HV DC Relay 8

Loudi Antaeus Electronic Ceramic Co.,Ltd is a fully integrated technical ceramics manufacturer complete with a Ceramic Engineering Department, Development Labs, and Up-to-Date Quality Programs.We can assist with the development of your part, to find an economical solution perfect for your needs.

Precision, Technical Ceramic Insulators

We produce Alumina Ceramic components and assemblies for new energy vehicles ,Zirconia ceramic products . Antaeus Ceramics Company’s processes are dry pressing, extrusion, secondary machining, glazing, and both centerless and flat grinding. We have the finest equipment, enabling us to produce high quality technical ceramics at competitive prices, in the quantities you may require. Antaeus Ceramics offers its engineering abilities to help you with your design and material selection for your unique application.



 Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
