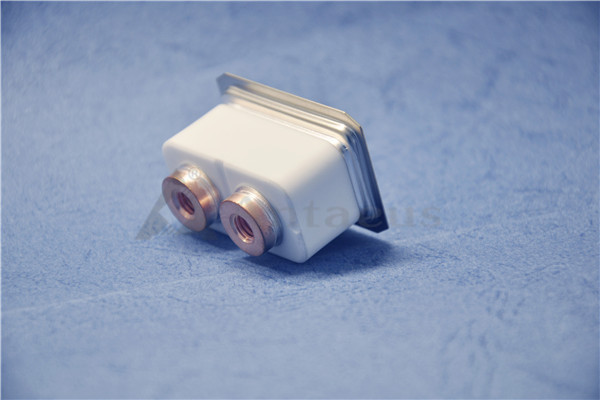

Machinable Electrical Ceramic Components For BYD'S Blade Battery
| Place of Origin | Hunan,China |
|---|---|
| Brand Name | Antaeus |
| Certification | / |
| Model Number | AD-A026 |
| Minimum Order Quantity | 1000 |
| Price | $1-$8 |
| Packaging Details | Inner vacuum packaging, outside carton. |
| Delivery Time | 15-45 days |
| Payment Terms | T/T or Negotiation |
| Supply Ability | Full Supply |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Chemical Ingredients | Al2O3 | Max. Use Temp. | 1650℃ |
|---|---|---|---|
| Bulk Density | 3.6g/cm3-3.9g/cm3 | Water Absorption | 0% |
| ROHS Hardness | ≥85 | Flexural Strength | 358(52) - 550 Mpa(psix10^3) |
| Compressive Strength | 2068(300) - 2600(377) Mpa(psix10^3) | Coefficient Of Thermal Expansion | 7.6 - 8.2 / 1X10^-6/℃ |
| Coefficient Of Thermal Conductivity | 16-30.4 / W/m.K | Thermal Shock Resistance | 250℃ |
| Dielectricity Constant | 9-9.7 / 1MHz.25℃ | Dielectric Strength | 8.3(210) - 8.7(220) / Ac-kV/mm(ac V/mil) |
| Volume Resistivity | >10^13 Ohm-cm | Description | Machinable Electrical Ceramic Components |
| Name | Machinable Electrical Ceramic Components For BYD'S Blade Battery Of Electric Vehicles (EV) | Usage | Ceramic Components For BYD'S Blade Battery |
| Highlight | 3.6g/Cm3 Alumina Ceramic Components,Relay Alumina Ceramic Components,3.9g/Cm3 Ceramic To Metal Brazing Contactor |
||
Product Description
Machinable Electrical Ceramic Components For BYD'S Blade Battery
1. Description:
The reliability of reference datum is very important to characterize engineering surfaces. Gaussian filtering can effectively separate various surface components and yield the reference datum. However, when freak signals like scratches and pits are contained in the measured surface, the reference will be distorted. M-estimation is introduced to solve the problem in this paper. Several typical robust weight functions are adopted and compared with each other. Based on the comparison results, a novel ADRF robust weight function is proposed. In order to verify the feasibility of the new method, computer simulation based on the synthetic sinusoidal waveforms is used and a case study is conducted. The results show that the robust ADRF filtering not only possesses the efficiency of Gaussian filtering under normal conditions, but also enhances the robustness of Gaussian filtering under the conditions of abnormal interference.
2. Feature Advantages:
1) High elasticity modulus
2) High compressive strength.
3) Anti corrosion
4) Abrasion resistance
5) Impact resistance
6) High precision
7) High stability
8) Good advanced ceramic materials
9) High welding sealing performance
10) High hardness and high density
11) Low thermal conductivity
12) Chemical inertness
13) Good wear resistance
14) High Fracture toughness
15) Good insulation performance
16) High temperature resistance
17) A variety of specifications is available
18) Satisfy various technical requests
19) Lower medium spoilage
20) Stiffness texture
21) Widely apply for automotive ceramic sensor , ceramic heater ,electric heating
3. Material Features / Properties:
| Color | White or Ivory | White or Ivory | White or Ivory | |
| Density | g/cm 3 | 3.82 | 3.9 | 3.92 |
| Hardness | HRA | 83 | 85 | 85 |
| Flexural Strength | Mpa (psi*10 3 ) | 375 | 386 | 381 |
4. Technical Parameters:
| Technical Parameters of Ceramics | ||||||||
| Items | Test Conditions | Unit or Symbol | 99% AL2O3 | 95% AL2O3 | 90% AL2O3 | Zirconia | Steatite | Silicon Carbide |
| Volume Density | -- | g/cm3 | ≥3.70 | ≥3.62 | ≥3.40 | ≥5.90 | ≥2.60 | ≥3.08 |
| Tightness | -- | Pa·m³/s | ≤1.0×10-11 | ≤1.0×10-11 | ≤1.0×10-11 | - | - | - |
| Liquid Permeability | -- | -- | Pass | Pass | Pass | Pass | - | |
| Flexural Strength | - | MPa | ≥300 | ≥280 | ≥230 | ≥1100 | ≥120 | ≥400 |
| Elastic Modulus | - | GPa | - | ≥280 | ≥250 | ≥220 | - | 400 |
| Poisson Ratio | - | - | - | 0.20～0.25 | 0.20～0.25 | - | - | - |
| Thermal Shock Resistance | 800℃( Room Temperature) Cycle: 10 times | Pass | Pass | Pass | - | - | - | |
| Coefficient of Linear Expansion | 20℃～100℃ | ×10-6 K-1 | - | - | - | ≤8 | - | |
| 20℃～500℃ | ×10-6 K-1 | 6.5～7.5 | 6.5～7.5 | 6.5～7.5 | 6.5～11.2 | - | - | |
| 20℃～800℃ | ×10-6 K-1 | 6.5～8.0 | 6.5～8.0 | 6.3～7.3 | - | 4 | ||
| 20℃～1200℃ | ×10-6 K-1 | - | 7.0～8.5 | - | - | - | - | |
| Coefficient of Thermal Conductivity | 20℃ | W/(m·k) | - | - | - | - | - | 90～110 |
| 1000℃ | ||||||||
| Dielectric Constant | 1MHz 20℃ | - | 9.0～10.5 | 9.0～10 | 9.0～10 | - | ≤7.5 | - |
| 1MHz 50℃ | - | - | 9.0～10 | - | - | - | - | |
| 10GHz 20℃ | - | 9.0～10.5 | 9.0～10 | 9.0～10 | - | - | - | |
| Volume Resistivity | 100℃ | Ω·cm | ≥1.0×1013 | ≥1.0×1013 | ≥1.0×1013 | - | ≥1.0×1012 | - |
| 300℃ | ≥1.0×1013 | ≥1.0×1010 | ≥1.0×1013 | - | - | - | ||
| 500℃ | ≥1.0×109 | ≥1.0×108 | -- | - | - | - | ||
| Disruptive Strength | D.C | kV/mm | ≥17 | ≥15 | ≥15 | - | ≥20 | - |
| Chemical Durability | 1:9HCl | mg/c㎡ | ≤0.7 | ≤7.0 | - | - | - | - |
| 10%NaOH | mg/c㎡ | ≤0.1 | ≤0.2 | - | -- | - | - | |
| Grain Size | - | μm | - | 3~12 | - | - | - | - |
5. Process Flows:
Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Inspecting --- Packing
6. Application Fields:
New energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.
7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln
8. Detection Devices:
Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter
9. Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery
10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service
11. Shipping and Package:
12. Our aimed market:
13. Guiding questions for material selection:
In order to select the appropriate material for your application, there are several questions that you should consider.
1) Are the mechanical properties important?
2) Will the part be exposed to wear/friction/impacts?
3) How many pieces are you looking to have made in your first batch?
4) What type of atmosphere will the part be operating in; inert or oxidizing?
5) What is the maximum operating temperature of the component?
6) Will the component experience any thermal shock?
7) Is electrical insulation important?
8) Is thermal conductivity important?
9) How important are tolerances and surface finish?
Loudi Antaeus Electronic Ceramic Co.,Ltd is located in China, and it is a manufacturer and international supplier of advanced technical ceramic products since 2004. Our customer base, which includes many Fortune 500 companies.
The Company has developed a wide range of ceramic and assemblies that are used in various industries such as new energy vehicles. Antaeus Ceramics is equipped with state-of-the-art manufacturing facilities and technical expertise to develop and supply ceramic components as per customer design and specifications.
Our high performance ceramic products made from al2o3 Alumina, Zirconia,among others finds wide application in various industries that requires high temperature resistance, chemical resistance, wear resistance, electrical insulation or mechanical strength.
Application:
These Advanced technical ceramic components find application in a number of industries, some of them being sealing technology, pumps, wire-drawing, battery/ cell manufacturing, sand-blasting, chemical, electronics, textile, automotive, etc.
Customized are welcome according to your drawings or samples.
FAQs (Frequently Asked Questions)
Q1. Are you a factory or trading company?
A: We are a manufacturer of over 19 years of experience. Welcome to visit our factory.Factory address is Loudi Economy and Technological Development Zone,Hunan,China.
Q2: Do you send a sample to check?
A: Sure, sample in stock is free and freight collect.
Q3: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If urgent ,Please call us or chat online.
Q4:What is your Capacity?
A:300,000 pcs per day;
Q5: Are the ceramics good quality?
A:We have passed the complete quality-control system ISO9001,IATF16949, ISO14001 and IRIS certification. We have more than 200 advanced testing equipment and instruments,All the Alumina ceramics are 100% fully inspected,including IQC, IPQC, FQC, and OQC process.
Q6:What is the Lead time?
A: About 15-35 days,according to the quantities required;
Q7: Is it available to provide customized products?
A:We can do OEM and ODM.
Notes:please feel free to contact us for more details when you have any inquiry!
Loudi Antaeus Electronic Ceramic Co.,Ltd
Factory address:Loudi Economy and Technological Development Zone,Hunan,China.
Contact person:Alice Deng
Tel:+8615073852630 (wechat)
Mail: alice@andidz.com
Skype: alicedeng0629
