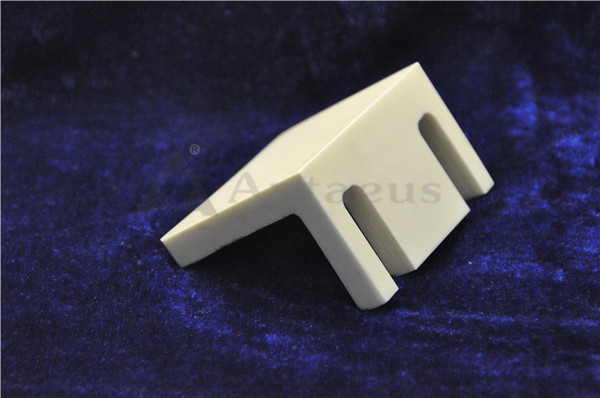

High Compressive Strength 99 Al2O3 Alumina Ceramic Parts
| Place of Origin | Hunan,China |
|---|---|
| Brand Name | Antaeus |
| Certification | / |
| Model Number | AD-A016 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Inner vacuum packaging, outside carton. |
| Delivery Time | 15-45 days |
| Payment Terms | T/T or Negotiation |
| Supply Ability | Full Supply |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Chemical Ingredients | Al2O3 | Max. Use Temp. | 1650℃ |
|---|---|---|---|
| Bulk Density | 3.6g/cm3-3.9g/cm3 | Water Absorption | 0% |
| ROHS Hardness | ≥85 | Flexural Strength | 358(52) - 550 Mpa(psix10^3) |
| Compressive Strength | 2068(300) - 2600(377) Mpa(psix10^3) | Coefficient Of Thermal Expansion | 7.6 - 8.2 / 1X10^-6/℃ |
| Coefficient Of Thermal Conductivity | 16-30.4 / W/m.K | Thermal Shock Resistance | 250℃ |
| Dielectricity Constant | 9-9.7 / 1MHz.25℃ | Dielectric Strength | 8.3(210) - 8.7(220) / Ac-kV/mm(ac V/mil) |
| Volume Resistivity | >10^13 Ohm-cm | ||
| Highlight | 99 Al2O3 Alumina Ceramic Parts,High Compressive Strength Alumina Ceramic Parts,99 Al2O3 Alumina Ceramic Components |
||
Product Description
High Precision 99 Alumina Ceramic Components Machining Parts
1. Description:
-
Demand for energy storage technologies is driving dramatic growth in the redox flow battery market, and with it opportunities for the ceramics community.Redox flow batteries belong to a large and growing group of devices designed for energy storage applications.Although their origins trace back to a zinc/chlorine flow battery used to power an airship in 1884 (1), rapid, systematic Growth in the redox flow battery market has only been apparent within the past decade.To understand the reasons for this growth and the concurrent opportunities for the ceramics community, it is important to understand several related areas: the energy storage market and its segmentation; the technology behind flow batteries and how it compares to alternatives; and the challenges that need to be addressed to make flow batteries cost-competitive in the market segments where they have an advantage over alternatives.
2. Feature Advantages:
1) High elasticity modulus
2) High compressive strength.
3) Anti corrosion
4) Abrasion resistance
5) Impact resistance
6) High precision
7) High stability
8) Good advanced ceramic materials
9) High welding sealing performance
10) High hardness and high density
11) Low thermal conductivity
12) Chemical inertness
13) Good wear resistance
14) High Fracture toughness
15) Good insulation performance
16) High temperature resistance
17) A variety of specifications is available
18) Satisfy various technical requests
19) Lower medium spoilage
20) Stiffness texture
21) Widely apply for automotive ceramic sensor , ceramic heater ,electric heating
3. Material Features / Properties:
| Color | White or Ivory | White or Ivory | White or Ivory | |
| Density | g/cm 3 | 3.82 | 3.9 | 3.92 |
| Hardness | HRA | 83 | 85 | 85 |
| Flexural Strength | Mpa (psi*10 3 ) | 375 | 386 | 381 |
4. Technical Parameters:
| Technical Parameters of Ceramics | ||||||||
| Items | Test Conditions | Unit or Symbol | 99% AL2O3 | 95% AL2O3 | 90% AL2O3 | Zirconia | Steatite | Silicon Carbide |
| Volume Density | -- | g/cm3 | ≥3.70 | ≥3.62 | ≥3.40 | ≥5.90 | ≥2.60 | ≥3.08 |
| Tightness | -- | Pa·m³/s | ≤1.0×10-11 | ≤1.0×10-11 | ≤1.0×10-11 | - | - | - |
| Liquid Permeability | -- | -- | Pass | Pass | Pass | Pass | - | |
| Flexural Strength | - | MPa | ≥300 | ≥280 | ≥230 | ≥1100 | ≥120 | ≥400 |
| Elastic Modulus | - | GPa | - | ≥280 | ≥250 | ≥220 | - | 400 |
| Poisson Ratio | - | - | - | 0.20～0.25 | 0.20～0.25 | - | - | - |
| Thermal Shock Resistance | 800℃( Room Temperature) Cycle: 10 times | Pass | Pass | Pass | - | - | - | |
| Coefficient of Linear Expansion | 20℃～100℃ | ×10-6 K-1 | - | - | - | ≤8 | - | |
| 20℃～500℃ | ×10-6 K-1 | 6.5～7.5 | 6.5～7.5 | 6.5～7.5 | 6.5～11.2 | - | - | |
| 20℃～800℃ | ×10-6 K-1 | 6.5～8.0 | 6.5～8.0 | 6.3～7.3 | - | 4 | ||
| 20℃～1200℃ | ×10-6 K-1 | - | 7.0～8.5 | - | - | - | - | |
| Coefficient of Thermal Conductivity | 20℃ | W/(m·k) | - | - | - | - | - | 90～110 |
| 1000℃ | ||||||||
| Dielectric Constant | 1MHz 20℃ | - | 9.0～10.5 | 9.0～10 | 9.0～10 | - | ≤7.5 | - |
| 1MHz 50℃ | - | - | 9.0～10 | - | - | - | - | |
| 10GHz 20℃ | - | 9.0～10.5 | 9.0～10 | 9.0～10 | - | - | - | |
| Volume Resistivity | 100℃ | Ω·cm | ≥1.0×1013 | ≥1.0×1013 | ≥1.0×1013 | - | ≥1.0×1012 | - |
| 300℃ | ≥1.0×1013 | ≥1.0×1010 | ≥1.0×1013 | - | - | - | ||
| 500℃ | ≥1.0×109 | ≥1.0×108 | -- | - | - | - | ||
| Disruptive Strength | D.C | kV/mm | ≥17 | ≥15 | ≥15 | - | ≥20 | - |
| Chemical Durability | 1:9HCl | mg/c㎡ | ≤0.7 | ≤7.0 | - | - | - | - |
| 10%NaOH | mg/c㎡ | ≤0.1 | ≤0.2 | - | -- | - | - | |
| Grain Size | - | μm | - | 3~12 | - | - | - | - |
5. Process Flows:
Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Inspecting --- Packing
6. Application Fields:
New energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.
7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln
8. Detection Devices:
Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter
9. Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery
10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service
11. Shipping and Package:
12. Our aimed market:
Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
