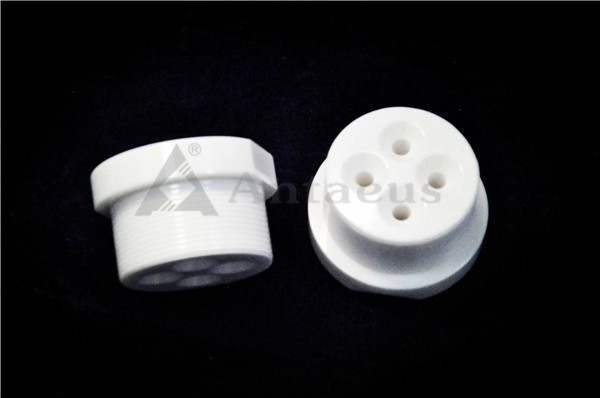

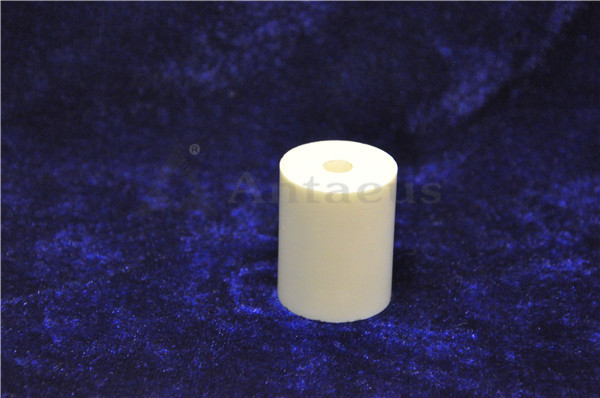

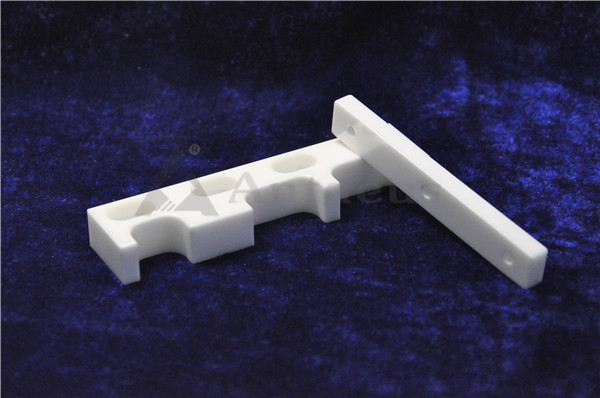

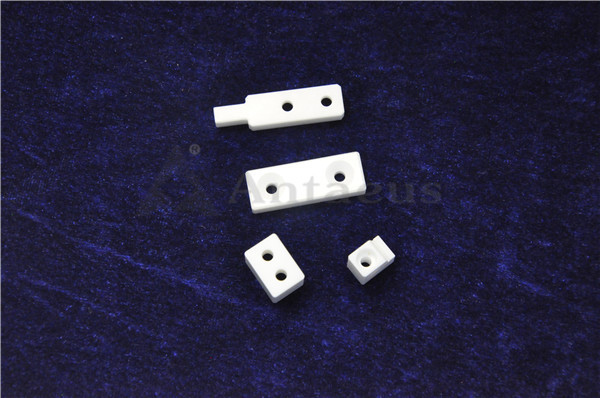

Vacuum Tight Non Porous 99.5% Alumina Ceramic Components
| Place of Origin | Hunan,China |
|---|---|
| Brand Name | Antaeus |
| Certification | / |
| Model Number | AD-A017 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Inner vacuum packaging, outside carton. |
| Delivery Time | 15-45 days |
| Payment Terms | T/T or Negotiation |
| Supply Ability | Full Supply |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Chemical Ingredients | Al2O3 | Max. Use Temp. | 1650℃ |
|---|---|---|---|
| Bulk Density | 3.6g/cm3-3.9g/cm3 | Water Absorption | 0% |
| ROHS Hardness | ≥85 | Flexural Strength | 358(52) - 550 Mpa(psix10^3) |
| Compressive Strength | 2068(300) - 2600(377) Mpa(psix10^3) | Coefficient Of Thermal Expansion | 7.6 - 8.2 / 1X10^-6/℃ |
| Coefficient Of Thermal Conductivity | 16-30.4 / W/m.K | Thermal Shock Resistance | 250℃ |
| Dielectricity Constant | 9-9.7 / 1MHz.25℃ | Dielectric Strength | 8.3(210) - 8.7(220) / Ac-kV/mm(ac V/mil) |
| Volume Resistivity | >10^13 Ohm-cm | ||
| Highlight | 99.5% Alumina Ceramic Components,Non Porous Alumina Ceramic Components,Vacuum Tight 99.5% Alumina Ceramic Parts |
||
Product Description
High Precision 99 Alumina Ceramic Components Machining Parts
1. Description:
AL-995 is a high purity 99.5% Alumina which due to its purity, chemical resistance and high temperature capabilities prove invaluable for semiconductor applications. This material benefits from the following features:1) Dense 2) Non-porous 3) Vacuum tight 4) Electrically and dimensionally stable at high temperatures 5) Low particle generation 6) Excellent dielectric properties 7) Resistant abrasion and chemical attack 8) Accepts moly-manganese metallising for high temperature brazing of assemblies.
The features and properties of this material make AL-995 an excellent choice for semiconductor applications such as semiconductor process chambers, sputtering targets, and fixtures. Our engineers also recommend AL-995 for laser devices for wide range of industrial, medical, and defence applications, power tubes for klystron and X-ray equipment and flow meters/pressure sensors.
2) Feature Advantages:
1) High elasticity modulus
2) High compressive strength.
3) Anti corrosion
4) Abrasion resistance
5) Impact resistance
6) High precision
7) High stability
8) Good advanced ceramic materials
9) High welding sealing performance
10) High hardness and high density
11) Low thermal conductivity
12) Chemical inertness
13) Good wear resistance
14) High Fracture toughness
15) Good insulation performance
16) High temperature resistance
17) A variety of specifications is available
18) Satisfy various technical requests
19) Lower medium spoilage
20) Stiffness texture
21) Widely apply for automotive ceramic sensor , ceramic heater ,electric heating
3. Material Features / Properties:
| Color | White or Ivory | White or Ivory | White or Ivory | |
| Density | g/cm 3 | 3.82 | 3.9 | 3.92 |
| Hardness | HRA | 83 | 85 | 85 |
| Flexural Strength | Mpa (psi*10 3 ) | 375 | 386 | 381 |
4. Technical Parameters:
| Technical Parameters of Ceramics | ||||||||
| Items | Test Conditions | Unit or Symbol | 99% AL2O3 | 95% AL2O3 | 90% AL2O3 | Zirconia | Steatite | Silicon Carbide |
| Volume Density | -- | g/cm3 | ≥3.70 | ≥3.62 | ≥3.40 | ≥5.90 | ≥2.60 | ≥3.08 |
| Tightness | -- | Pa·m³/s | ≤1.0×10-11 | ≤1.0×10-11 | ≤1.0×10-11 | - | - | - |
| Liquid Permeability | -- | -- | Pass | Pass | Pass | Pass | - | |
| Flexural Strength | - | MPa | ≥300 | ≥280 | ≥230 | ≥1100 | ≥120 | ≥400 |
| Elastic Modulus | - | GPa | - | ≥280 | ≥250 | ≥220 | - | 400 |
| Poisson Ratio | - | - | - | 0.20～0.25 | 0.20～0.25 | - | - | - |
| Thermal Shock Resistance | 800℃( Room Temperature) Cycle: 10 times | Pass | Pass | Pass | - | - | - | |
| Coefficient of Linear Expansion | 20℃～100℃ | ×10-6 K-1 | - | - | - | ≤8 | - | |
| 20℃～500℃ | ×10-6 K-1 | 6.5～7.5 | 6.5～7.5 | 6.5～7.5 | 6.5～11.2 | - | - | |
| 20℃～800℃ | ×10-6 K-1 | 6.5～8.0 | 6.5～8.0 | 6.3～7.3 | - | 4 | ||
| 20℃～1200℃ | ×10-6 K-1 | - | 7.0～8.5 | - | - | - | - | |
| Coefficient of Thermal Conductivity | 20℃ | W/(m·k) | - | - | - | - | - | 90～110 |
| 1000℃ | ||||||||
| Dielectric Constant | 1MHz 20℃ | - | 9.0～10.5 | 9.0～10 | 9.0～10 | - | ≤7.5 | - |
| 1MHz 50℃ | - | - | 9.0～10 | - | - | - | - | |
| 10GHz 20℃ | - | 9.0～10.5 | 9.0～10 | 9.0～10 | - | - | - | |
| Volume Resistivity | 100℃ | Ω·cm | ≥1.0×1013 | ≥1.0×1013 | ≥1.0×1013 | - | ≥1.0×1012 | - |
| 300℃ | ≥1.0×1013 | ≥1.0×1010 | ≥1.0×1013 | - | - | - | ||
| 500℃ | ≥1.0×109 | ≥1.0×108 | -- | - | - | - | ||
| Disruptive Strength | D.C | kV/mm | ≥17 | ≥15 | ≥15 | - | ≥20 | - |
| Chemical Durability | 1:9HCl | mg/c㎡ | ≤0.7 | ≤7.0 | - | - | - | - |
| 10%NaOH | mg/c㎡ | ≤0.1 | ≤0.2 | - | -- | - | - | |
| Grain Size | - | μm | - | 3~12 | - | - | - | - |
5. Process Flows:
Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Inspecting --- Packing
6. Application Fields:
New energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.
7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln
8. Detection Devices:
Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter
9. Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery
10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service
11. Shipping and Package:
12. Our aimed market:
Loudi Antaeus Electronic Ceramic Co.,Ltd is a fully integrated technical ceramics manufacturer complete with a Ceramic Engineering Department, Development Labs, and Up-to-Date Quality Programs.We can assist with the development of your part, to find an economical solution perfect for your needs.
Precision, Technical Ceramic Insulators
We produce Alumina Ceramic components and assemblies for new energy vehicles ,Zirconia ceramic products . Antaeus Ceramics Company’s processes are dry pressing, extrusion, secondary machining, glazing, and both centerless and flat grinding. We have the finest equipment, enabling us to produce high quality technical ceramics at competitive prices, in the quantities you may require. Antaeus Ceramics offers its engineering abilities to help you with your design and material selection for your unique application.
Application:
These Advanced technical ceramic components find application in a number of industries, some of them being sealing technology, pumps, wire-drawing, battery/ cell manufacturing, sand-blasting, chemical, electronics, textile, automotive, etc.
Customized are welcome according to your drawings or samples.
FAQs (Frequently Asked Questions)
Q1. Are you a factory or trading company?
A: We are a manufacturer of over 19 years of experience. Welcome to visit our factory.Factory address is Loudi Economy and Technological Development Zone,Hunan,China.
Q2: Do you send a sample to check?
A: Sure, sample in stock is free and freight collect.
Q3: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If urgent ,Please call us or chat online.
Q4:What is your Capacity?
A:300,000 pcs per day;
Q5: Are the ceramics good quality?
A:We have passed the complete quality-control system ISO9001,IATF16949, ISO14001 and IRIS certification. We have more than 200 advanced testing equipment and instruments,All the Alumina ceramics are 100% fully inspected,including IQC, IPQC, FQC, and OQC process.
Q6:What is the Lead time?
A: About 15-35 days,according to the quantities required;
Q7: Is it available to provide customized products?
A:Yes,and we can do OEM and ODM.
