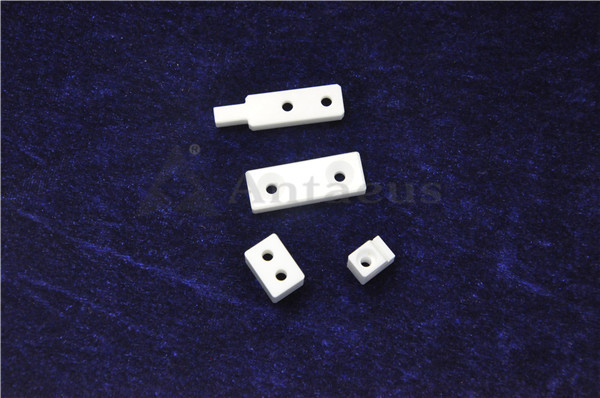

High Stability 99% Alumina Ceramic Components For Automotive Ceramic Sensor
| Place of Origin | Hunan,China |
|---|---|
| Brand Name | Antaeus |
| Certification | / |
| Model Number | AD-A046 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Inner vacuum packaging, outside carton. |
| Delivery Time | 15-45 days |
| Payment Terms | T/T or Negotiation |
| Supply Ability | Full Supply |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Chemical Ingredients | Al2O3 | Max. Use Temp. | 1650℃ |
|---|---|---|---|
| Bulk Density | 3.6g/cm3-3.9g/cm3 | Water Absorption | 0% |
| ROHS Hardness | ≥85 | Flexural Strength | 358(52) - 550 Mpa(psix10^3) |
| Compressive Strength | 2068(300) - 2600(377) Mpa(psix10^3) | Coefficient Of Thermal Expansion | 7.6 - 8.2 / 1X10^-6/℃ |
| Coefficient Of Thermal Conductivity | 16-30.4 / W/m.K | Thermal Shock Resistance | 250℃ |
| Dielectricity Constant | 9-9.7 / 1MHz.25℃ | Dielectric Strength | 8.3(210) - 8.7(220) / Ac-kV/mm(ac V/mil) |
| Volume Resistivity | >10^13 Ohm-cm | ||
| Highlight | High Stability 99% Alumina Ceramic Components,Automotive Ceramic Sensor Alumina Ceramic Components,3.9g/cm3 Aluminium Oxide Ceramics |
||
Product Description
High Fracture Toughness 99% Al2O3 Ceramic Products
1. Description:
Most Alumina Ceramics are white but can be pink or brown. The different colors are derived from the additives during sintering as well as any impurities in the raw material. The majority of Alumina Ceramics have a purity level between 95 and 99 per cent. Higher purity Alumina Ceramics are perfect for environments where there is potential severe wear or may contain corrosive contaminates. Since Alumina Ceramics have excellent thermal stability, they can be used in areas that have drastic temperature changes.The chemical composition of Alumina Ceramics heightens its resistance to corrosion. Alumina is known as aluminum oxide, a hard wearing advanced ceramic that has been in use for years and is the most popular ceramic material for a variety of applications. The aluminum oxide in Alumina Ceramics is a form of bauxite, a white, brown, or red clay material first discovered in France in the early 19th Century and is commonly found in several locations around the world.
2. Feature Advantages:
1) High elasticity modulus
2) High compressive strength.
3) Anti corrosion
4) Abrasion resistance
5) Impact resistance
6) High precision
7) High stability
8) Good advanced ceramic materials
9) High welding sealing performance
10) High hardness and high density
11) Low thermal conductivity
12) Chemical inertness
13) Good wear resistance
14) High Fracture toughness
15) Good insulation performance
16) High temperature resistance
17) A variety of specifications is available
18) Satisfy various technical requests
19) Lower medium spoilage
20) Stiffness texture
21) Widely apply for automotive ceramic sensor , ceramic heater ,electric heating
3. Material Features / Properties:
| Color | White or Ivory | White or Ivory | White or Ivory | |
| Density | g/cm 3 | 3.82 | 3.9 | 3.92 |
| Hardness | HRA | 83 | 85 | 85 |
| Flexural Strength | Mpa (psi*10 3 ) | 375 | 386 | 381 |
4. Technical Parameters:
| Technical Parameters of Ceramics | ||||||||
| Items | Test Conditions | Unit or Symbol | 99% AL2O3 | 95% AL2O3 | 90% AL2O3 | Zirconia | Steatite | Silicon Carbide |
| Volume Density | -- | g/cm3 | ≥3.70 | ≥3.62 | ≥3.40 | ≥5.90 | ≥2.60 | ≥3.08 |
| Tightness | -- | Pa·m³/s | ≤1.0×10-11 | ≤1.0×10-11 | ≤1.0×10-11 | - | - | - |
| Liquid Permeability | -- | -- | Pass | Pass | Pass | Pass | - | |
| Flexural Strength | - | MPa | ≥300 | ≥280 | ≥230 | ≥1100 | ≥120 | ≥400 |
| Elastic Modulus | - | GPa | - | ≥280 | ≥250 | ≥220 | - | 400 |
| Poisson Ratio | - | - | - | 0.20～0.25 | 0.20～0.25 | - | - | - |
| Thermal Shock Resistance | 800℃( Room Temperature) Cycle: 10 times | Pass | Pass | Pass | - | - | - | |
| Coefficient of Linear Expansion | 20℃～100℃ | ×10-6 K-1 | - | - | - | ≤8 | - | |
| 20℃～500℃ | ×10-6 K-1 | 6.5～7.5 | 6.5～7.5 | 6.5～7.5 | 6.5～11.2 | - | - | |
| 20℃～800℃ | ×10-6 K-1 | 6.5～8.0 | 6.5～8.0 | 6.3～7.3 | - | 4 | ||
| 20℃～1200℃ | ×10-6 K-1 | - | 7.0～8.5 | - | - | - | - | |
| Coefficient of Thermal Conductivity | 20℃ | W/(m·k) | - | - | - | - | - | 90～110 |
| 1000℃ | ||||||||
| Dielectric Constant | 1MHz 20℃ | - | 9.0～10.5 | 9.0～10 | 9.0～10 | - | ≤7.5 | - |
| 1MHz 50℃ | - | - | 9.0～10 | - | - | - | - | |
| 10GHz 20℃ | - | 9.0～10.5 | 9.0～10 | 9.0～10 | - | - | - | |
| Volume Resistivity | 100℃ | Ω·cm | ≥1.0×1013 | ≥1.0×1013 | ≥1.0×1013 | - | ≥1.0×1012 | - |
| 300℃ | ≥1.0×1013 | ≥1.0×1010 | ≥1.0×1013 | - | - | - | ||
| 500℃ | ≥1.0×109 | ≥1.0×108 | -- | - | - | - | ||
| Disruptive Strength | D.C | kV/mm | ≥17 | ≥15 | ≥15 | - | ≥20 | - |
| Chemical Durability | 1:9HCl | mg/c㎡ | ≤0.7 | ≤7.0 | - | - | - | - |
| 10%NaOH | mg/c㎡ | ≤0.1 | ≤0.2 | - | -- | - | - | |
| Grain Size | - | μm | - | 3~12 | - | - | - | - |
5. Process Flows:
Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Inspecting --- Packing
6. Application Fields:
New energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.
7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln
8. Detection Devices:
Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter
9. Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery
10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service
11. Shipping and Package:
12. Our aimed market:
Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
